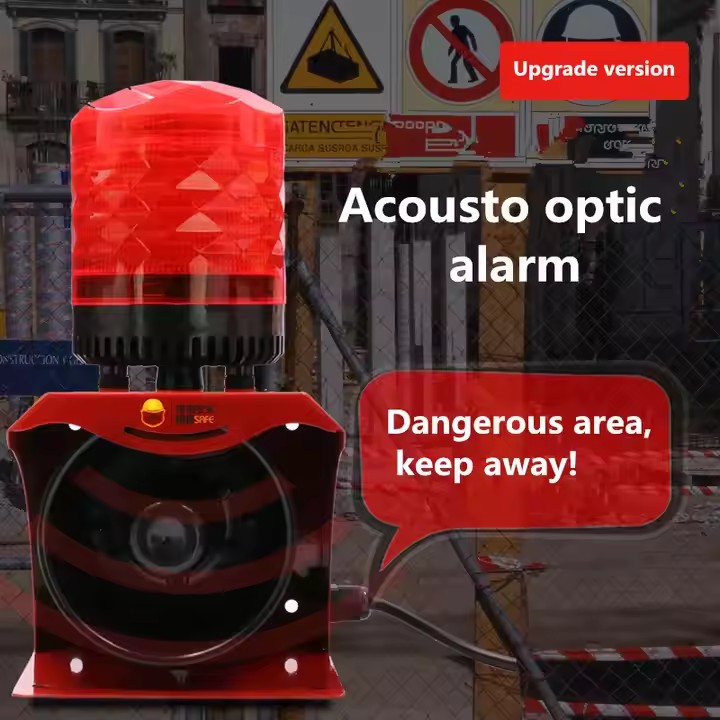

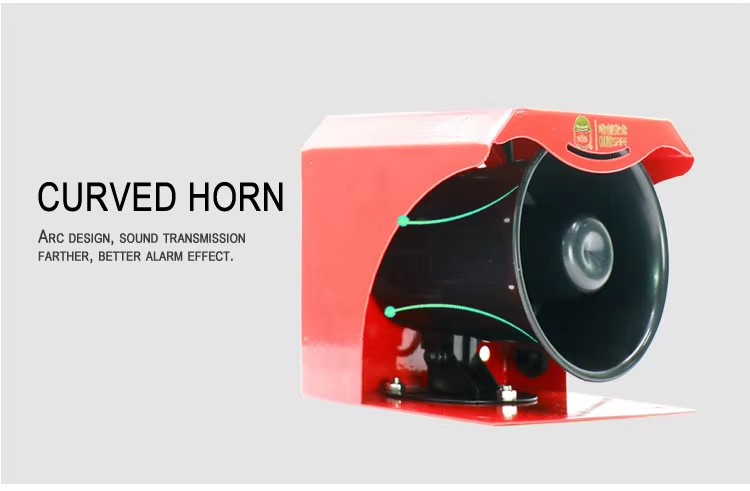

PR-AL513 Audible Alarm
The PR-AL513 is our flagship audible alarm with 120dB output, designed for maximum alerting capability in noisy industrial environments. Its rugged construction and weatherproof design make it suitable for both indoor and outdoor applications.
Key Features:

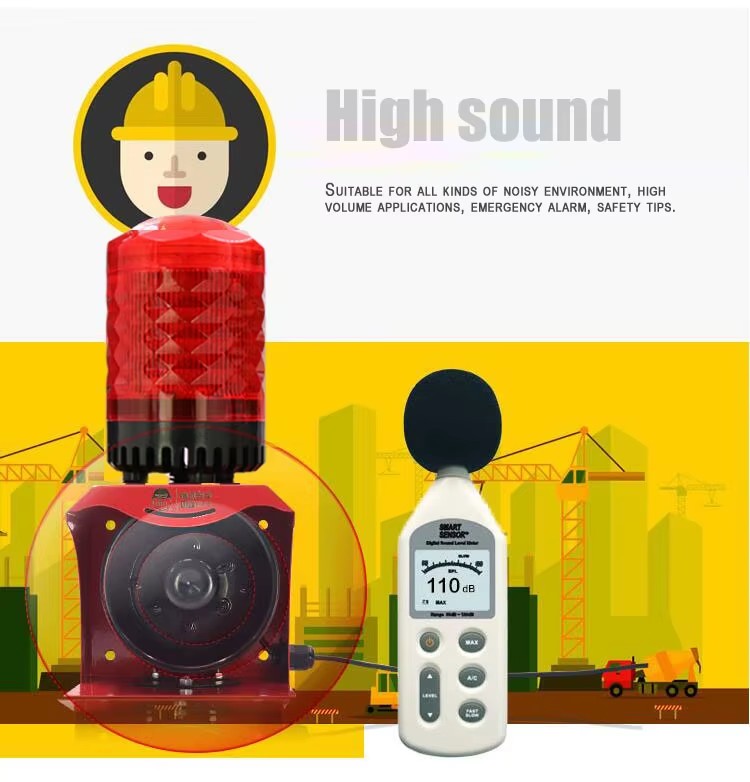

- 120dB output at 1 meter

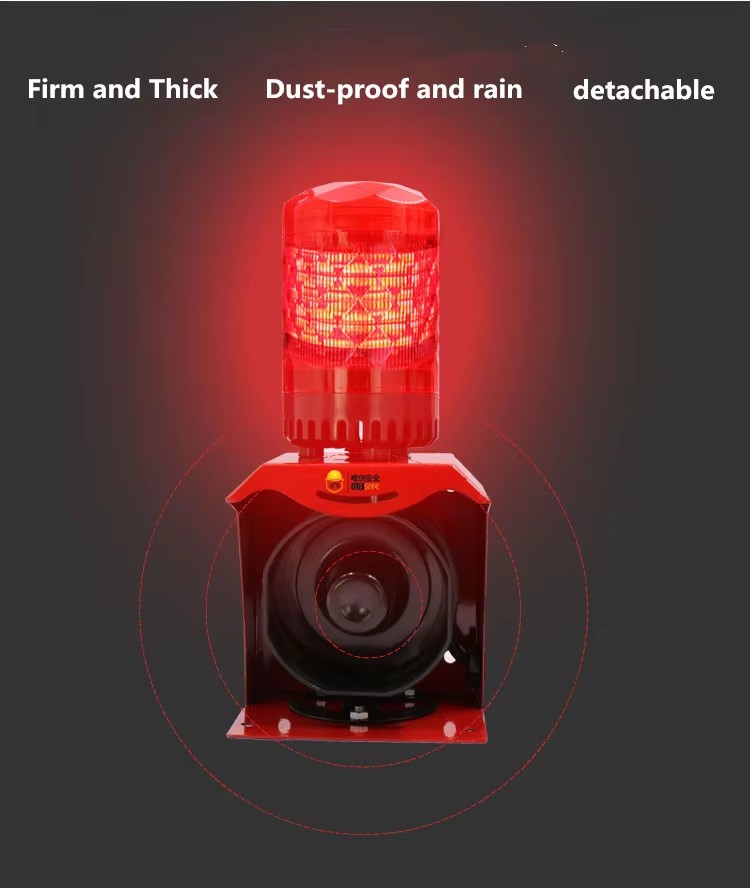

- IP65 rated weatherproof enclosure
- 24V DC or 110-240V AC operation

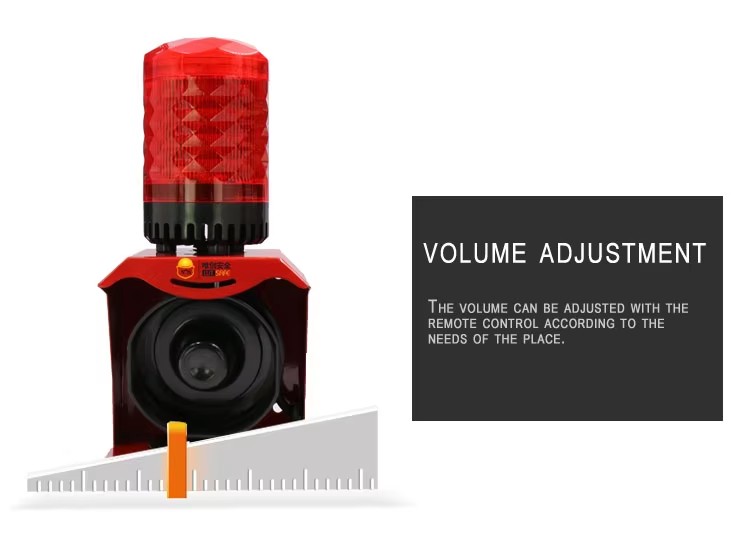

- Adjustable tone patterns

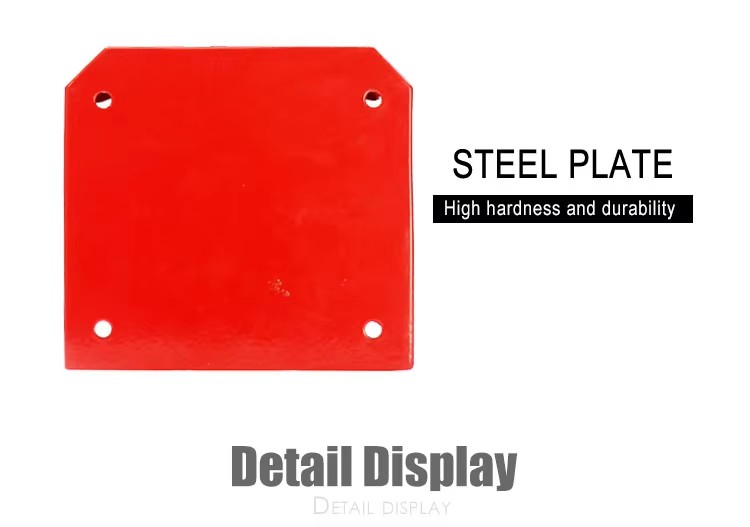

- Stainless steel mounting bracket included
- 1-year warranty
Product Description
The PR-AL513 industrial audible alarm is designed to provide clear, unmistakable warning signals in even the noisiest environments. With its 120dB output, this alarm ensures that your safety messages are heard above machinery, equipment, and other industrial noise.

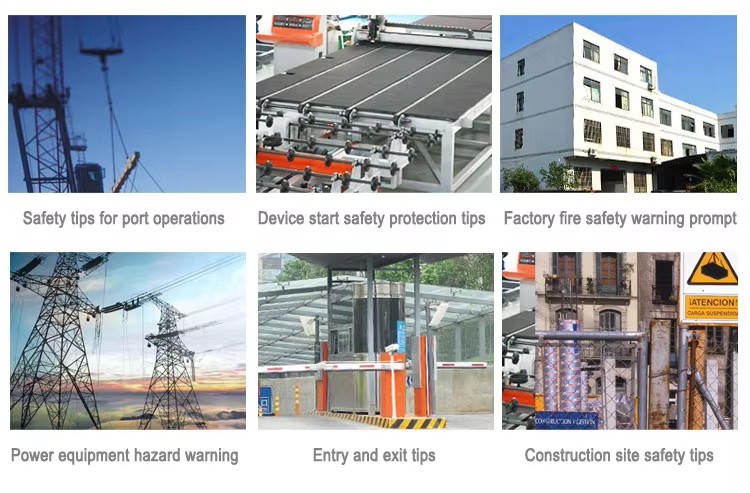

Applications
- Factory and warehouse safety systems
- Emergency evacuation alarms
- Machine status and fault warnings
- Process control and automation systems
- Construction site safety
Installation
The PR-AL513 comes with a stainless steel mounting bracket for easy installation on walls, ceilings, or machinery. The unit features screw terminals for simple wiring and is compatible with most industrial control systems.
Technical Highlights
This alarm features selectable tone patterns including continuous, intermittent, and pulsed modes. The high-efficiency transducer provides maximum sound output with minimal power consumption, making it suitable for battery-backed systems.

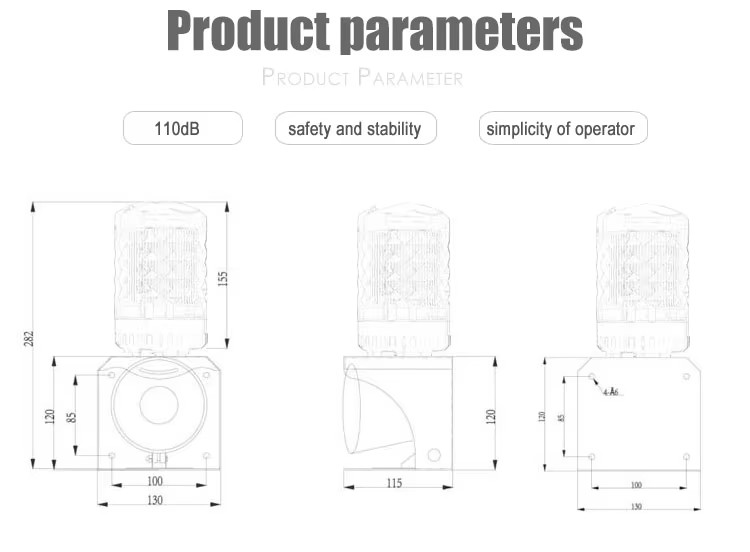

Technical Specifications
| Model Number | PR-AL513 |
|---|---|
| Sound Output | 120dB at 1 meter |
| Power Supply | 12~24V DC or 110-240V AC (select model) |
| Current Consumption | 150mA @ 24V DC |
| Frequency | 2.8kHz ±500Hz |
| Operating Temperature | -30°C to +70°C |
| Ingress Protection | IP65 |
| Material | ABS housing, stainless steel bracket |
| Warranty | 1 years |
